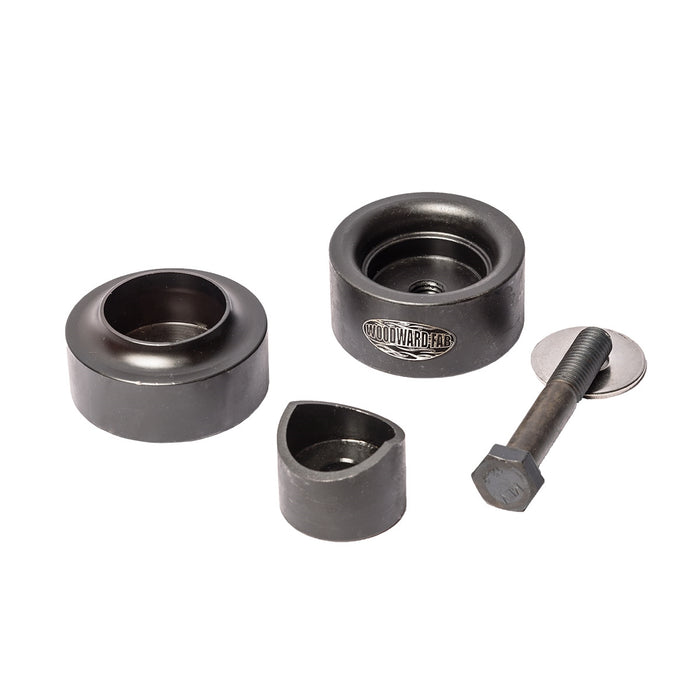

3 in. Dimple Die Punch and Flare Set HECPF4H Woodward Fab

Features and Benefits:

• 3" Diameter
• Draw stud style, use without a press
• Creates a clean hole and produce a gentle flare
• Adds Rigidity and Stiffness to panels
• Heat Treated Steel
• Work up to 1/16″ (16 gauge) mild steel or 14 Gauge aluminum
• Start with small pilot hole and by tightening the provided bolt the tool will first punch the hole and by continuing to tighten the bolt a beautiful, uniform dimple will be formed to strengthen the metal.

Create distinctive holes in sheet metal up to 16 gauge for mild steel and 14 gauge for aluminum. Start with a small pilot hole and by tightening the provided draw stud bolt using 2 wrenches, the tool will first punch the hole, then continue to form the flare as the 2 sides are brought together. Flaring the hole adds rigidity and stiffness to the panel and reduces weight, while adding a striking feature to any custom application.
